Towbars Mazda Bravo and B-Series Utes

Find Mazda Bravo and B_Series roof racks here
Date	Vehicle description	Make	Type	Part #	Rating	Fitted $	Comments
6/1985-12/2006	B-Series 2WD, tub body without rear bumper (Not LPG model)		Tongue	2066	1200/100
			Hitch	2071R	1800/180		Up to 1999 rating 1500kg
			HLPS	2069R	1800/180		Includes protector bars and alloy step
6/1985-12/2006	B-Series 4WD, tub body without rear bumper (Not LPG model)		TLP	2067	1200/100		Includes protector bars
			Hitch	2071R	1800/180		Up to 1999 rating 1500kg
			HLPS	2069R	1800/180		Up to 1999 rating 1500kg

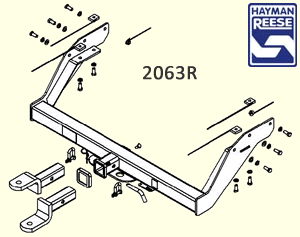

6/1985-12/2006	B-Series (LPG MODEL) Cab Chassis & tub body WITHOUT bumper		Hitch	2063R	1800/180

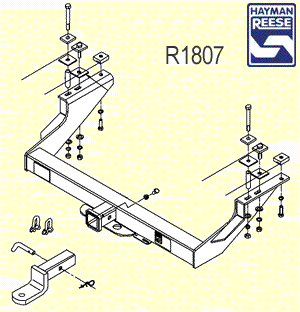

6/1985-12/2006	B-Series (LPG MODEL) Cab Chassis & tub body WITH bumper		Hitch	1807R	1800/180		Made to order bar please call to check availability
6/1985-12/2006	B-Series Cab Chassis (Not LPG models)		Tongue	2066	1200/100
6/1985-12/2006	B-Series Cab Chassis (Not LPG models)		Hitch	2071R	1800/180		Up to 1999 rating 1500kg

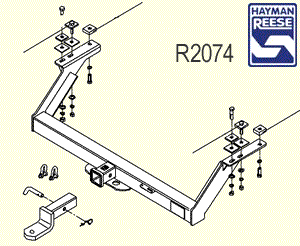

6/1985-12/2006	B-Series tub body WITH rear bumper (Not LPG model) 2&4WD		Hitch	2074R	1800/180		Up to 1999 rating 1500kg

Prices include fitting, trailer lighting socket, chrome ball and cap.

Rating = max trailer/max down load on ball

How to organise your tow bar fitting.

Tow bar Types

Standard (Tongue) towbars

Standard tow bar gooseneck Tow bar lug spanner

The standard towbar uses a tongue to mount the tow ball and are also known as gooseneck towbars. The tongue can be removed by undoing 2 bolts. The standard bar is ideal for towing lighter loads like small box trailers, tinnies, jet skis and many other single axle trailers. Ratings range from 600kg to 1600kg depending on the vehicle. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.

Hitch Receiver towbars

SUbaru Forester towbar Subaru Forester tow hitch

The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. The bars available for B_Series and Mazda Bravo Utes have a 50mm square receiver socket. They allow quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.

Protector bar towbars

Protector bar towbar Rear protection bar

On some vehicles it is possible to install a tongue type or hitch receiver that also incorporates protector bars and on some vehicles a step is also incorporated.

HLP: Hitch bar with lamp protectors

HLPS: Hitch bar, lamp protectors and step.

TLP: Standard bar with lamp protectors.

TLPS: Standard bar with lamp protectors and step.

Gallery Mazda B-Series and Mazda Bravo tow bars

Ford Courier towbar Hayman Reese 2069R towbar, Mazda B-series

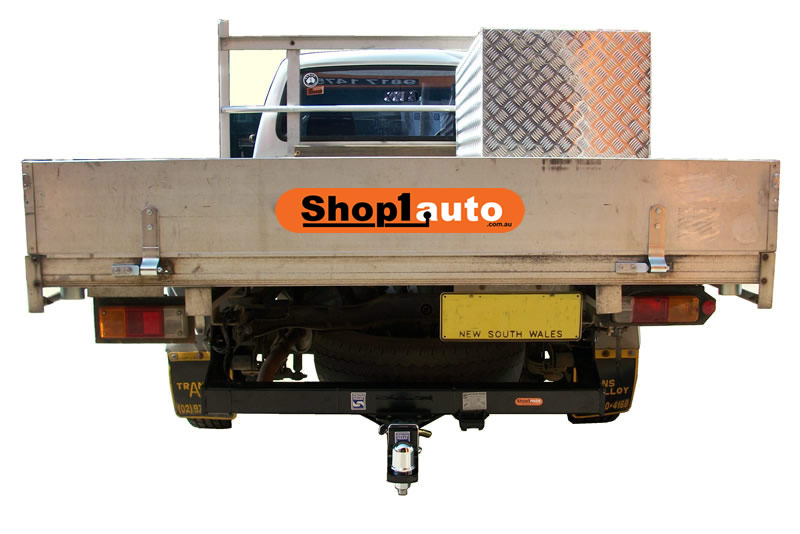

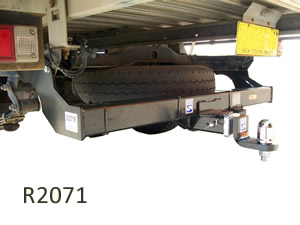

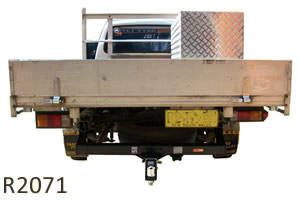

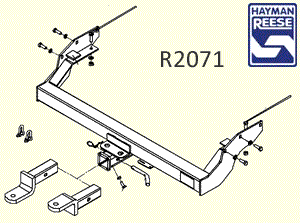

Hayman Reese 2071R towbar, B-series/Bravo

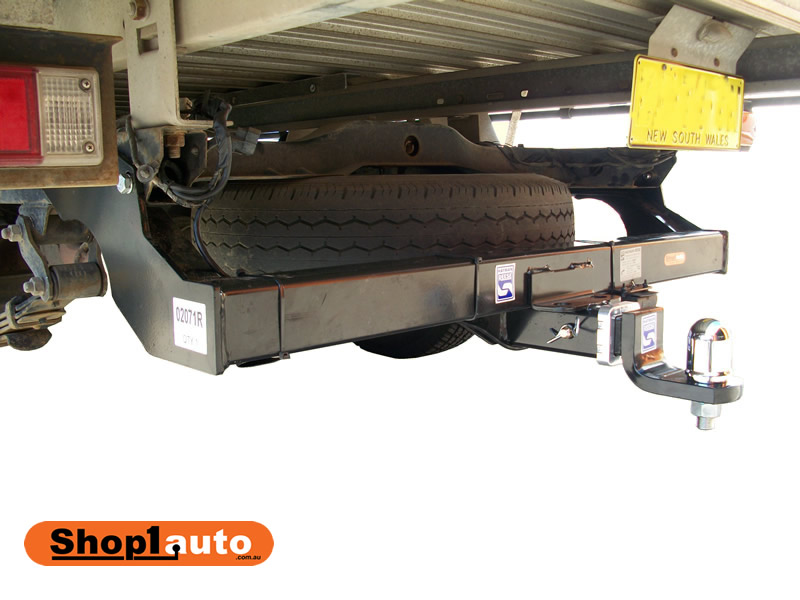

Hitch towbar installed on Mazda B-Series
